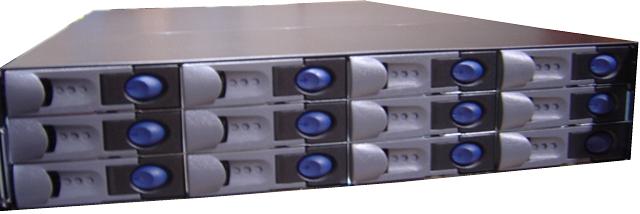

* Click on the above picture for enlarged view |
| EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black, Beige, or Custom Design |
System Boards:
|
Dual Opteron , Dual Xeon, Pentium 4, based boards |
| Motherboard Size: |
Support ATX M/B (Max. 12" x 13" ) |
| Drive Bays: |
12 x 3.5" Swappable SATA HDD Trays |
| Power Supply: |
(Rear Chassis Installation) 2U Single or Redundant 460W ATX power supply (optional) |
| Front USB ports: |
0 |
| Cooling Units: |
4 x 8cm Ball Bearing Fans, 42.5CFM/Each |
| Expansion Slot: |
Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots |
| Indicators: |
LEDs for Power ON/OFF, HDD, Fan, & Temperature |
| Thermal Management Card: |
Installed |
| Buttons: |
Power On/Off, Fan Alarm & System Reset |
| Dimensions: |
483(W) x 88(H) x 650(D)mm (19" x 3.5" x 25.6") |
| Product Applications: |
RAID Server, File Server, Web Server |
| |
|
|
|
|
|
Ordering information
| Part Number |
Description |
| RM2009-SATA-46 |
2U Rackmount Chassis, 12x SATA, Black, with 460W EPS 12V (24 + 8 ) pin Power supply |
| RM2009-SATA-48 |
2U Rackmount Chassis, 12x SATA, Black, with 480W EPS 12V (24 + 8 ) pin Power supply |
| RM2009-SATA-R46 |
2U Rackmount Chassis, 12x SATA, Black, with 460W EPS 12V mini redundant Power supply |
|
|
