Part # RM2004
|
| EIA RS-310C 19" Rackmount Standard |
| Construction: |
Heavy Duty Cold Rolled Electroplated Steel |
| Color: |
Black, Beige, or Custom Design |
| System Boards: |
Dual Xeon, Dual Opteron based boards |
| Motherboard Size: |
Support ATX M/B (Max. to 12" x 9.6") |
| Drive Bays: |
1 x 5.25", 3 x 3.5" Hidden |
| Power Supply: |
(Rear Chassis Installation) 1U Single Power with 190mm-200mm Depth (Optional) |
| Cooling Units: |
1 x (80mm = 42.5CFM ea.), 2 x (40x20mm = 7CFM ea.) Heavy Duty Ball Bearing Fans |
| Front USB ports: |
2 |
| Expansion Slot: |
Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots |
| Indicators: |
LEDs for Power, HDD, 3 x LAN Activity |
| Buttons: |
Power On/Off & System Reset Rocker Switch |
| Dimensions: |
483(W) x 88(H) x 357(D)mm (19" x 3.5" x 14.1") |
| Product Applications: |
Web Server, Email Server, Proxy Server, High-End Workstation, Print Server |
|
|

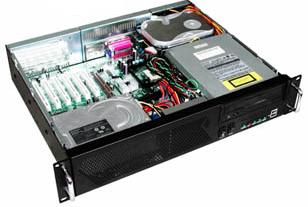

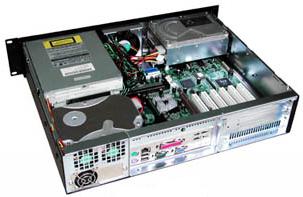

More photo - (click on the picture for enlarged view)

Ordering Information
| Part # |
Description |
RM2004-0
|
2U Rackmount Chassis with 1 x 5.25" + 3 x 3.5" bays fits Dual Xeon, Dual Opteron based boards.Case only. Black. |
RM2004-0-7L
|
2U Rackmount chassis with 1 x 5.25" exposed bay, 3 x 3.5" internal bay, support 12" x 9.6" motherboard. 7 vertical low profile back panel. Case only, Black . |
|
|
