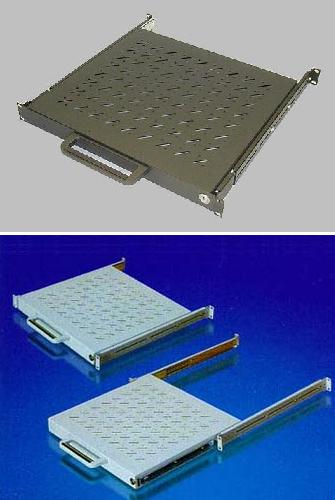

Part # RA7001-17
1U SLIDING RACK SHELF, PLATE DEEP 15.75",
WITH LOCK AND VENTED |
| Specification |
MAXIMUM RAIL BRACKET DEPTH: 22.75"
1U HIGH, 17" DEEP VENTED PLATE (Depth=15.75")
Unit Depth (effective) WxDxH: 16.75"x18.25"x1.75"/ 425.45x463.55x44.45mm
Unit Depth (overall) WxDxH: 19"x18.25"x1.75"/ 482.6x463.55x44.45mm
Brackets extendable from 18.25" ~ 22.75"(463.55~577.85mm)
LOCKABLE PLATE
100 LBS LOAD CAPACITY
BALL BEARING SLIDE RAIL
 |
Part # RA7001-23
1U RACK MOUNT SLIDING SHELF, PLATE DEEP 23",
WITH LOCK AND VENTED |
| Specification |
MAXIMUM RAIL BRACKET DEPTH: 35"
1U HIGH, 23.5" DEEP VENTED PLATE (Depth=23.5")
Unit Depth (effective) WxDxH: 16.75"x26.5"x1.75"/ 425.45x673.1x44.45mm
Unit Depth (overall) WxDxH: 16.75"x26.5"x1.75"/ 425.45x673.1x44.45mm
Brackets extendable from 26.5" ~ 36"(673.1~914.4mm)
LOCKABLE PLATE
100 LBS LOAD CAPACITY
BALL BEARING SLIDE RAIL
|
|
|
